Stage 4 | 580KW

Mustang GT Stage 4 | 580KW

The HP-F Stage 4 Performance Package has been engineered for Mustang GT owners seeking serious supercharged performance without compromising drivability or reliability. Built around the renowned Harrop FDFI 2650 Intercooled Supercharger System, this package combines increased boost, upgraded engine protection, enhanced airflow and bespoke calibration to deliver exceptional power, torque and throttle response.

Every upgrade begins with a comprehensive pre-upgrade dyno assessment, establishing baseline power and torque figures before any modifications are carried out. This provides an accurate benchmark and allows us to clearly demonstrate the gains achieved throughout the upgrade process.

At the heart of the package is the Harrop FDFI 2650 Intercooled Supercharger System, delivering approximately 10 PSI of boost pressure to dramatically increase power and torque across the entire rev range. Featuring Eaton's latest TVS rotor technology and an integrated intercooling system, the Harrop 2650 provides instant throttle response, immense mid-range torque and relentless acceleration.

To maximise the performance and reliability of the supercharged combination, the package includes a Harrop Cold Air Intake System, allowing the supercharger to draw cooler, less restrictive airflow while improving overall engine efficiency.

The engine's breathing capability is further enhanced through a complete performance exhaust package, incorporating 4-into-1 headers, high-flow catalytic converters and a dual 3-inch cat-back exhaust system. This significantly reduces exhaust restriction, allowing the supercharged Coyote V8 to operate more efficiently while producing an aggressive exhaust note that perfectly complements its newfound performance.

Recognising the increased demands placed on the engine under boost, HP-F also installs billet oil pump gears and a billet lower crank gear. These proven reliability upgrades provide additional strength and durability for high-performance applications, making them an essential component of any serious forced-induction Coyote package.

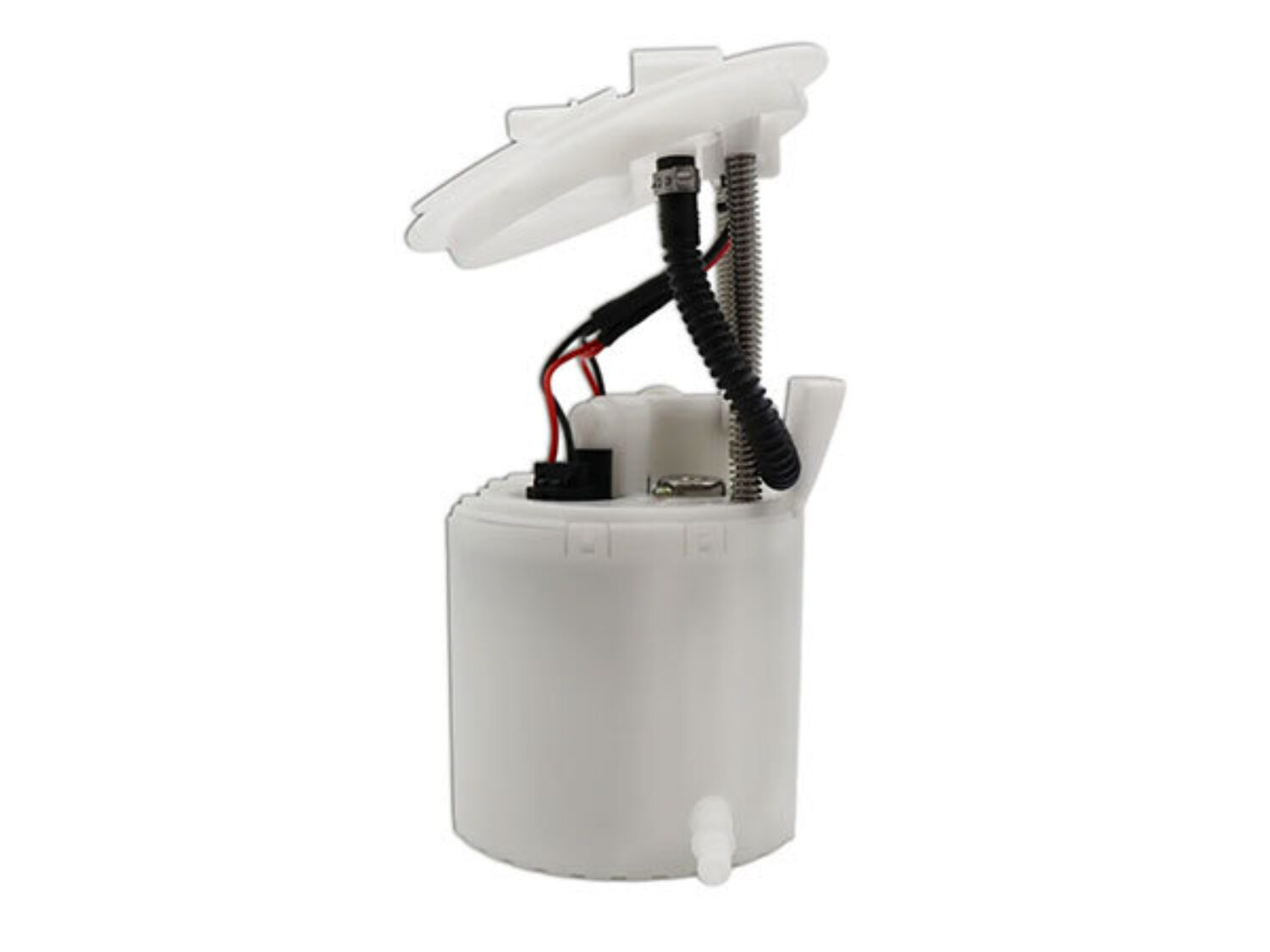

Fuel delivery is supported by an upgraded DeatschWerks in-tank fuel pump, ensuring the engine receives the fuel volume required to safely support increased power levels across all operating conditions.

To bring the complete package together, HP-F performs a bespoke custom dyno calibration developed specifically for your vehicle and modifications. Extensive dyno testing is utilised to optimise fuel delivery, ignition timing, throttle response, airflow modelling and boost management, ensuring safe, reliable and repeatable performance gains.

Once tuning is complete, every vehicle undergoes comprehensive dyno validation and testing to verify performance, drivability and reliability. A final dyno run is then completed to compare against the original baseline figures, clearly demonstrating the substantial gains achieved through the Stage 4 package.

At the completion of the upgrade, you'll receive a detailed dyno report showcasing the final power and torque improvements. The result is a Mustang GT that delivers explosive acceleration, immense torque and genuine supercar-rivalling performance while retaining the refinement and everyday usability expected from a professionally engineered HP-F performance package.

Transform your Mustang GT with HP-F's Stage 4 Supercharger Package, combining Harrop TVS2650 power, proven reliability upgrades and dyno-tested performance for the ultimate street-driven Coyote.

Package Includes

1 x JLT Cold air intake with Snap-in lid
1 x Harrop TVS2650 Intercooled supercharger kit
1 x Hurricane 1-7/8" 4-1 headers coated & High Flow Cats
1 x Dual 3" S/Steel Catback
1 x KPM 1000hp Fuel pump upgrade
1 x Billet oil pump gears & lower crank gear
1 x Custom ECU dyno tune
1 x Before and after dyno graph
1 x Labour to fit, tune and test

Key Features

Featuring a Harrop FDFI 2650 intercooled supercharger, billet oil pump gears, upgraded fuel system, full performance exhaust package and custom dyno calibration, the HP-F Stage 4 Package delivers exceptional horsepower, immense torque and uncompromising supercharged Coyote performance.

Notes

• *Please note: Power figures are estimates only and actual figure's may vary based on each specific vehicle.
• We recommend all vehicles coming to HPF for tuning run 98 Octane fuel. Please contact us if you have a need to use different fuel.
• Quoted power figures are approximate and calculated at the flywheel, based on results with the 6.2 lt. LSA power plant at Harrop HQ dynomometer.
• Modifications such as this package require the vehicle to be in excellent mechanical order.
• We advise against increasing the power output substantially on high kilometer engines, if your engine has in excessive of 150,000kms please contact us to discuss options.
• Whilst every attempt is made to ensure prices listed online are correct, they are subject to change at any time.
• Additional parts may be required in some cases depending on the condition of the vehicle. Cost of these parts and additional labor required may incur additional cost.
• Final price may vary dependent on specific options chosen.
• Some automatic transmission models may require a cooler kit at additional cost.
• Balance of new car driveline warranty available at additional cost.
• Images are for illustration purposes only
